Type：

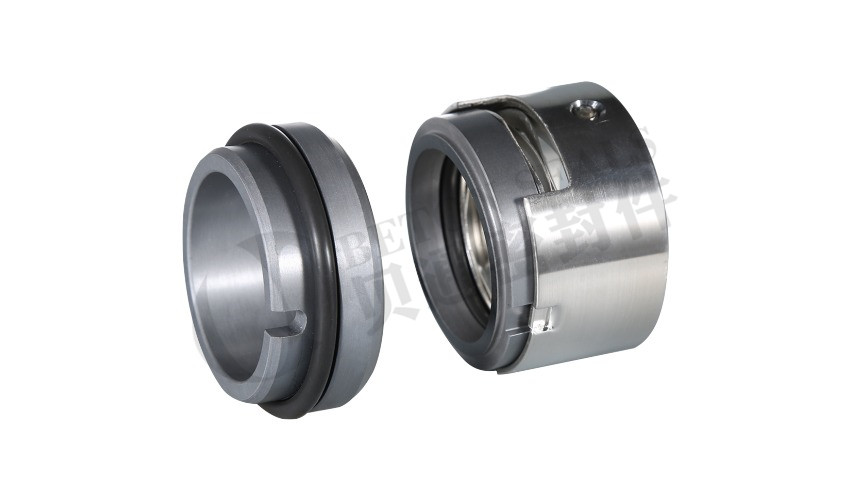

Wave Spring Mechanical Seal
Replacement：
Bergmann M7N，Fluiten US3A/UM3A
Flowerve Europac 600,AES W07DM
Temperature：
-20℃ to +180℃
Pressure：
≤1.2Mpa
Speed：
≤15m/s
Material：
Q2,B,U2,P,E,V,F,G

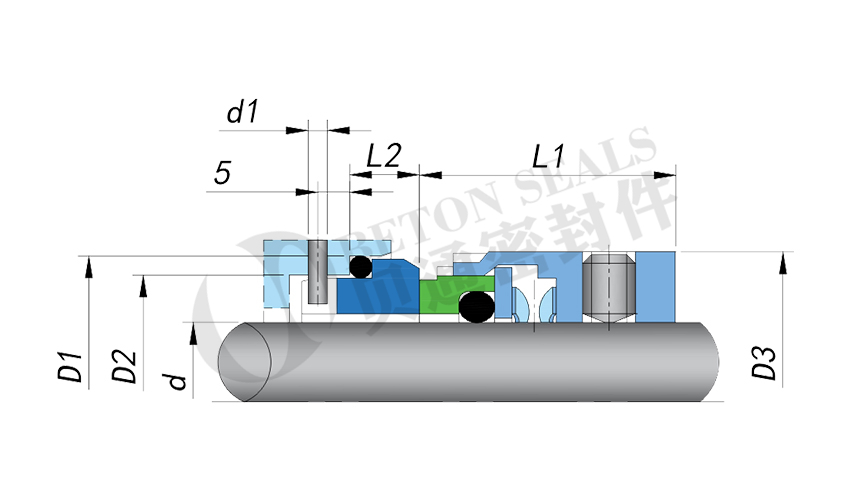

Size(mm) | D1 | D2 | D3 | L1 | L2 |
14 | 25.0 | 21.0 | 25.0 | 25.0 | 10.0 |
16 | 27.0 | 23.0 | 27.0 | 25.0 | 10.0 |
18 | 33.0 | 27.0 | 33.0 | 26.0 | 11.5 |
20 | 35.0 | 29.0 | 35.0 | 26.0 | 11.5 |
22 | 37.0 | 31.0 | 37.0 | 26.0 | 11.5 |
24 | 39.0 | 33.0 | 39.0 | 28.5 | 11.5 |
25 | 40.0 | 34.0 | 40.0 | 28.5 | 11.5 |
28 | 43.0 | 37.0 | 43.0 | 31.0 | 11.5 |
30 | 45.0 | 39.0 | 45.0 | 31.0 | 11.5 |
32 | 48.0 | 42.0 | 47.0 | 31.0 | 11.5 |
33 | 48.0 | 42.0 | 48.0 | 31.0 | 11.5 |
35 | 50.0 | 44.0 | 50.0 | 31.0 | 11.5 |
38 | 56.0 | 49.0 | 55.0 | 31.0 | 14.0 |
40 | 58.0 | 51.0 | 57.0 | 31.0 | 14.0 |
43 | 61.0 | 54.0 | 60.0 | 31.0 | 14.0 |
45 | 63.0 | 56.0 | 62.0 | 31.0 | 14.0 |
48 | 66.0 | 59.0 | 65.0 | 31.0 | 14.0 |
50 | 70.0 | 62.0 | 67.0 | 32.5 | 15.0 |
53 | 73.0 | 65.0 | 70.0 | 32.5 | 15.0 |
55 | 75.0 | 67.0 | 72.0 | 32.5 | 15.0 |
58 | 78.0 | 70.0 | 79.0 | 37.5 | 15.0 |
60 | 80.0 | 72.0 | 81.0 | 37.5 | 15.0 |
63 | 83.0 | 75.0 | 84.0 | 37.5 | 15.0 |
65 | 85.0 | 77.0 | 86.0 | 37.5 | 15.0 |
68 | 90.0 | 81.0 | 89.0 | 34.5 | 18.0 |
70 | 92.0 | 83.0 | 91.0 | 42.0 | 18.0 |
75 | 97.0 | 88.0 | 99.0 | 42.0 | 18.0 |
80 | 105.0 | 95.0 | 104.0 | 41.8 | 18.2 |
85 | 110.0 | 100.0 | 109.0 | 41.8 | 18.2 |
90 | 115.0 | 105.0 | 114.0 | 46.8 | 18.2 |
95 | 120.0 | 110.0 | 119.0 | 47.8 | 17.2 |
100 | 125.0 | 115.0 | 124.0 | 47.8 | 17.2 |
