Type：

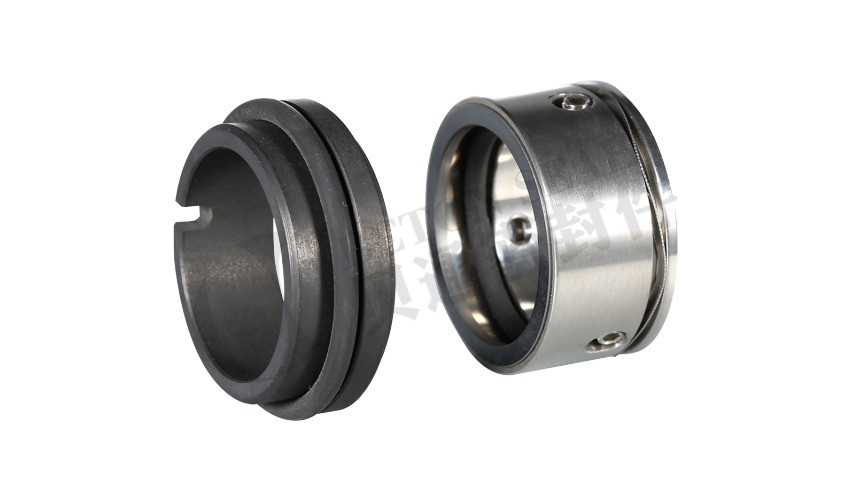

Wave Spring Mechanical Seal
Temperature：
-20℃ to +180℃
Pressure：
≤1.2Mpa
Speed：
≤15m/s
Material：
Q2,B,U2,P,E,V,F,G
Size(mm) | D1 | D2 | D3 | d1 | L1 | L2 | L3 |
16 | 27 | 23 | 26 | 3 | 19.1 | 8.6 | 15.0 |
18 | 33 | 27 | 29 | 3 | 19.1 | 10.0 | 17.0 |
20 | 35 | 29 | 32 | 3 | 19.1 | 10.0 | 17.0 |
22 | 37 | 31 | 35 | 3 | 19.1 | 10.0 | 17.0 |
24 | 39 | 33 | 37 | 3 | 19.1 | 10.0 | 17.0 |
25 | 40 | 34 | 37 | 3 | 19.1 | 10.0 | 17.0 |
28 | 43 | 37 | 41 | 3 | 19.1 | 10.0 | 17.0 |
30 | 45 | 39 | 43 | 3 | 19.1 | 10.0 | 17.0 |
32 | 48 | 42 | 47 | 3 | 19.1 | 10.0 | 17.0 |
33 | 48 | 42 | 48 | 3 | 19.1 | 10.0 | 17.0 |
35 | 50 | 44 | 49 | 3 | 19.1 | 10.0 | 17.0 |
38 | 56 | 49 | 53 | 4 | 21.1 | 11.0 | 18.0 |
40 | 58 | 51 | 55 | 4 | 21.1 | 11.0 | 18.0 |
43 | 61 | 54 | 60 | 4 | 21.1 | 11.0 | 18.0 |
45 | 63 | 56 | 60 | 4 | 21.1 | 11.0 | 18.0 |
48 | 66 | 59 | 65 | 4 | 21.1 | 11.0 | 18.0 |
50 | 70 | 62 | 65 | 4 | 21.1 | 13.0 | 20.0 |
53 | 73 | 65 | 74 | 4 | 22.1 | 13.0 | 20.0 |
55 | 75 | 67 | 74 | 4 | 22.1 | 13.0 | 20.0 |
58 | 78 | 70 | 79 | 4 | 25.8 | 13.0 | 20.0 |
60 | 80 | 72 | 79 | 4 | 25.8 | 13.0 | 20.0 |
63 | 83 | 75 | 87 | 4 | 25.8 | 13.0 | 20.0 |
65 | 85 | 77 | 87 | 4 | 25.8 | 13.0 | 20.0 |
68 | 90 | 81 | 93 | 4 | 25.8 | 15.3 | 22.0 |
70 | 92 | 83 | 93 | 4 | 25.8 | 15.3 | 22.0 |
75 | 97 | 88 | 98 | 4 | 25.8 | 15.3 | 22.0 |
80 | 105 | 95 | 104 | 4 | 25.8 | 15.7 | 22.5 |
85 | 110 | 100 | 108 | 4 | 25.8 | 15.7 | 22.5 |
90 | 115 | 105 | 113 | 4 | 25.8 | 15.7 | 22.5 |
95 | 120 | 110 | 118 | 4 | 25.8 | 15.7 | 22.5 |
100 | 125 | 115 | 123 | 4 | 25.8 | 15.7 | 22.5 |
