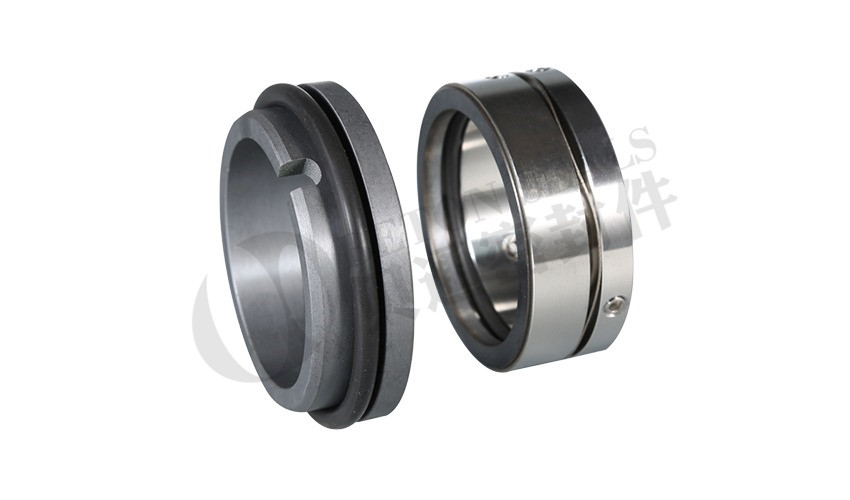

B68C
Type：
Wave Spring Mechanical Seal
Replacement：
AES W02，Vulcan 1688L，Roten UNITEN 7K
Temperature：
-40℃ to +200℃
Pressure：
≤0.8Mpa
Speed：
≤18m/s
Material：
Q2,B,U2,P,E,V,F,G

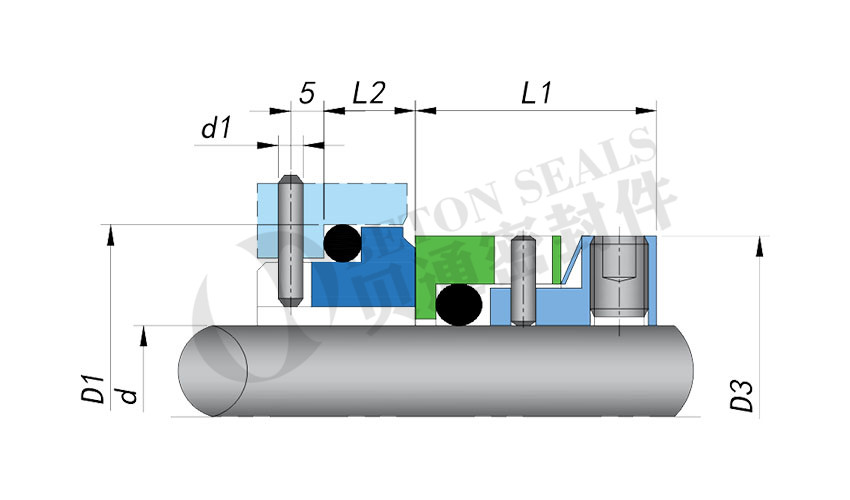

Size(mm) | D1 | D3 | d1 | L1 | L2 |
16 | 27 | 27.0 | 4.0 | 19.1 | 8.6 |
20 | 35 | 31.0 | 5.0 | 19.1 | 10.0 |
22 | 37 | 33.0 | 5.0 | 19.1 | 10.0 |
24 | 39 | 34.1 | 5.0 | 19.1 | 10.0 |
25 | 40 | 35.2 | 5.0 | 19.1 | 10.0 |
28 | 43 | 40.0 | 5.0 | 19.1 | 10.0 |
30 | 45 | 41.0 | 5.0 | 19.1 | 10.0 |
32 | 48 | 42.4 | 5.0 | 19.1 | 10.0 |
33 | 48 | 44.0 | 5.0 | 19.1 | 10.0 |
35 | 50 | 45.5 | 5.0 | 19.1 | 10.0 |
38 | 56 | 51.8 | 5.0 | 21.1 | 11.0 |
40 | 58 | 53.8 | 5.0 | 21.1 | 11.0 |
43 | 61 | 56.0 | 5.0 | 21.1 | 11.0 |
45 | 63 | 58.2 | 5.0 | 21.1 | 11.0 |
48 | 66 | 61.4 | 5.0 | 21.1 | 11.0 |
50 | 70 | 61.9 | 5.0 | 21.1 | 13.0 |
55 | 75 | 72.0 | 5.0 | 22.1 | 13.0 |
60 | 80 | 76.0 | 5.0 | 25.8 | 13.0 |
63 | 83 | 79.3 | 5.0 | 25.8 | 13.0 |
65 | 85 | 82.3 | 5.0 | 25.8 | 13.0 |
70 | 92 | 88.9 | 5.0 | 25.8 | 15.3 |
75 | 97 | 96.0 | 5.0 | 25.8 | 15.3 |
