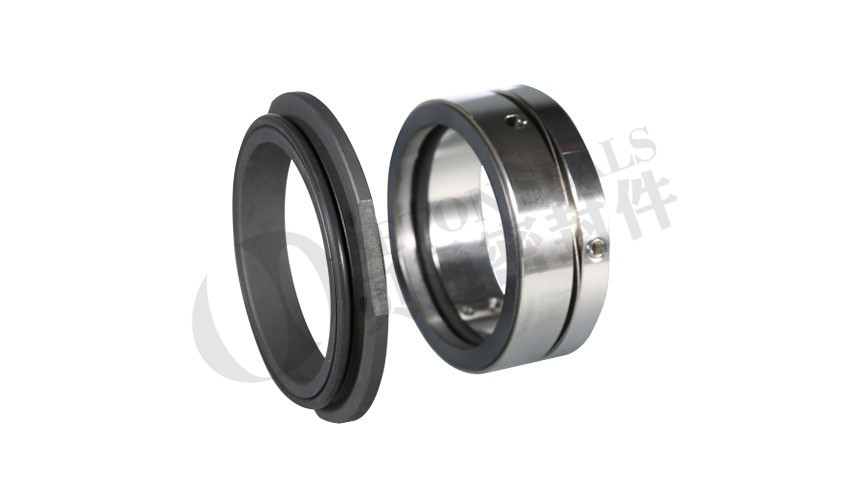

B68E
Type：
Wave Spring Mechanical Seal
Suit for Grundfos,Hilge Pumps
Replacement：
AES W04，Vulcan 1688Y
Temperature：
-40℃ to +200℃
Pressure：
≤0.8Mpa
Speed：
≤18m/s
Material：
Q2,B,U2,P,E,V,F,G

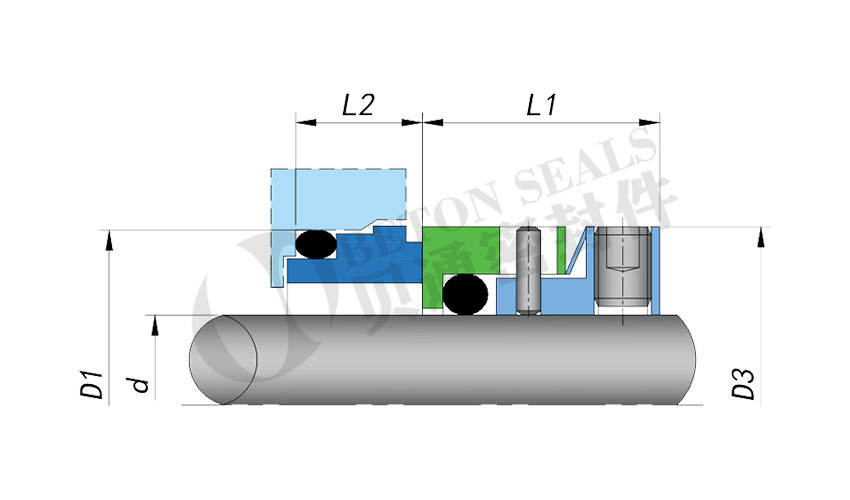

PUMP ref | Size(mm) | D1 | D3 | L1 | L2 |
10 | 30 | 40.0 | 41.0 | 19.1 | 9.3 |
20 | 35 | 44.5 | 45.5 | 19.1 | 9.2 |
30 | 50 | 62.0 | 61.9 | 21.1 | 10.4 |
40 | 70 | 85.0 | 88.9 | 25.8 | 14.1 |
50 | 80 | 95.0 | 101.0 | 25.8 | 16.2 |
