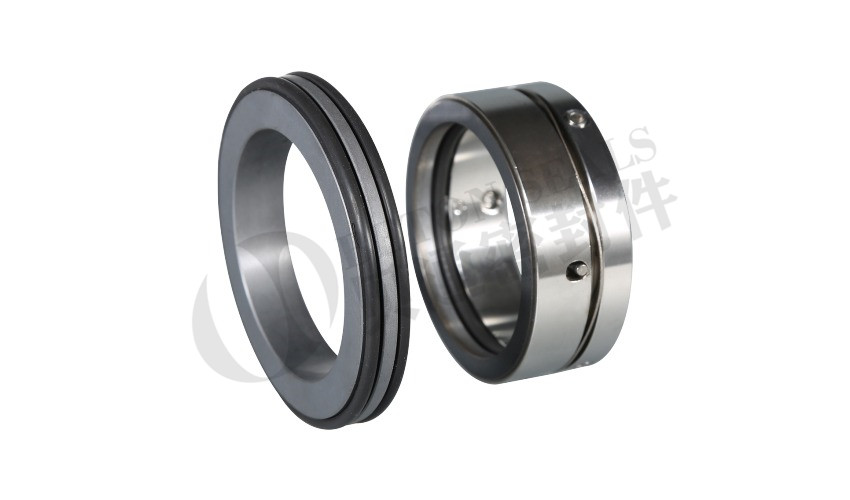

B68A
Type：
Wave Spring Mechanical Seal
Replacement：
AES W01-TL， Burgmann M7KS60
Temperature：
-40℃ to +200℃
Pressure：
≤0.8Mpa
Speed：
≤10m/s
Material：
Q2,B,U2,P,E,V,F,G

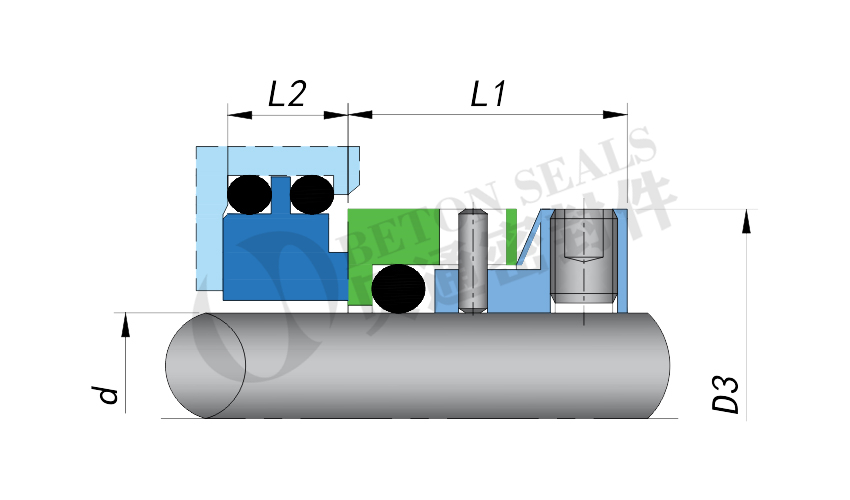

PUMP ref | Size(mm) | D3 | L1 | L2 |
10 | 30 | 41.0 | 19.1 | 10.3 |
20 | 35 | 45.5 | 19.1 | 12.0 |
30 | 50 | 61.9 | 21.0 | 12.0 |
