Type：

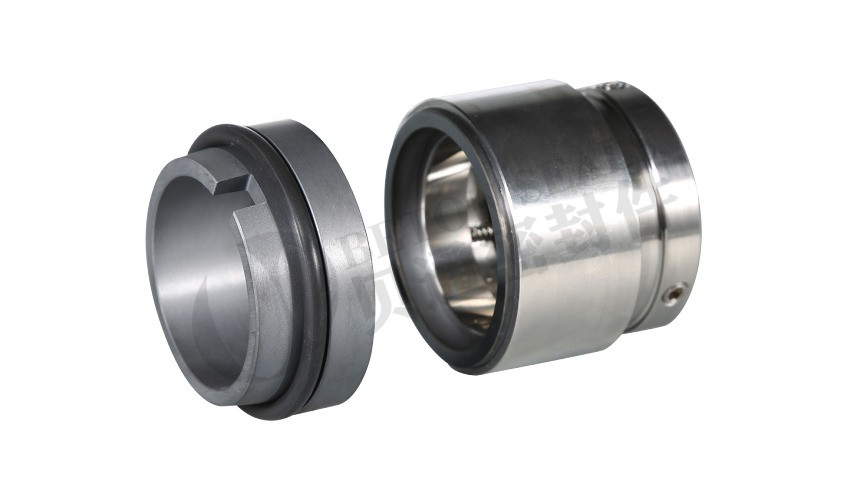

Multi Spring Mechanical Seal
Replacement：
AES DIN SAI
Temperature：
-50℃ to +204℃
Pressure：
≤1.2Mpa
Speed：
≤15m/s
Material：
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M

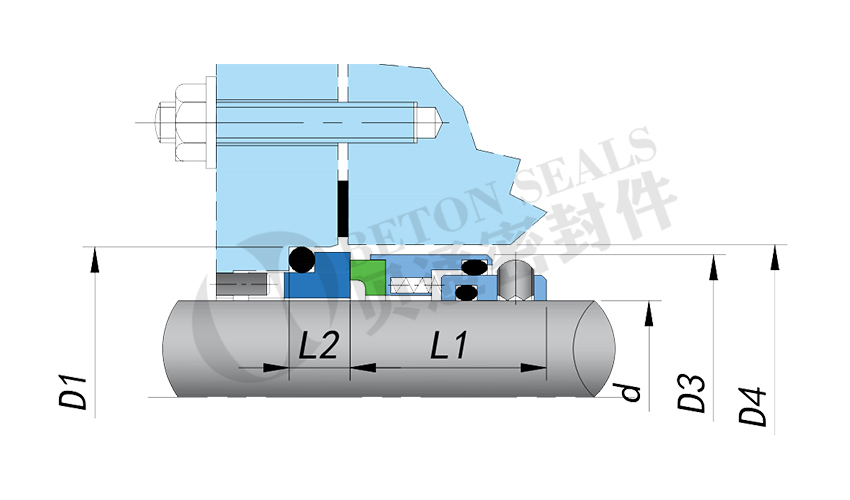

Size(mm) | D1 | D3 | D4 | L1 | L2 |
18 | 33 | 32.0 | 34.0 | 27.9 | 9.6 |
20 | 35 | 34.0 | 36.0 | 27.9 | 9.6 |
22 | 37 | 36.0 | 38.0 | 27.9 | 9.6 |
24 | 39 | 38.0 | 40.0 | 30.0 | 10.1 |
25 | 40 | 39.0 | 41.0 | 30.0 | 10.1 |
28 | 43 | 42.0 | 44.0 | 32.4 | 10.1 |
30 | 45 | 44.0 | 46.0 | 32.4 | 10.1 |
32 | 48 | 46.0 | 48.0 | 32.4 | 10.1 |
33 | 48 | 47.0 | 49.0 | 32.4 | 10.1 |
35 | 50 | 49.0 | 51.0 | 32.4 | 10.1 |
38 | 56 | 54.0 | 58.0 | 33.9 | 11.1 |
40 | 58 | 56.0 | 60.0 | 33.9 | 11.1 |
43 | 61 | 59.0 | 63.0 | 33.9 | 11.1 |
45 | 63 | 61.0 | 65.0 | 33.9 | 11.1 |
48 | 66 | 64.0 | 68.0 | 33.9 | 11.1 |
50 | 70 | 66.0 | 70.0 | 34.4 | 11.1 |
53 | 73 | 69.0 | 73.0 | 34.4 | 13.1 |
55 | 75 | 71.0 | 75.0 | 34.4 | 13.1 |
58 | 78 | 78.0 | 83.0 | 38.9 | 13.1 |
60 | 80 | 80.0 | 85.0 | 38.9 | 13.6 |
63 | 83 | 83.0 | 88.0 | 38.9 | 13.3 |
65 | 85 | 85.0 | 90.0 | 38.9 | 13.3 |
68 | 90 | 88.0 | 93.0 | 37.4 | 15.1 |
70 | 92 | 90.0 | 95.0 | 44.9 | 15.1 |
75 | 97 | 99.0 | 104.0 | 44.9 | 15.1 |
80 | 105 | 104.0 | 119.0 | 44.2 | 15.8 |
85 | 110 | 109.0 | 114.0 | 44.2 | 15.8 |
90 | 115 | 114.0 | 119.0 | 49.2 | 15.8 |
95 | 120 | 119.0 | 124.0 | 49.2 | 15.8 |
100 | 125 | 124.0 | 129.0 | 49.2 | 15.8 |
