Type：

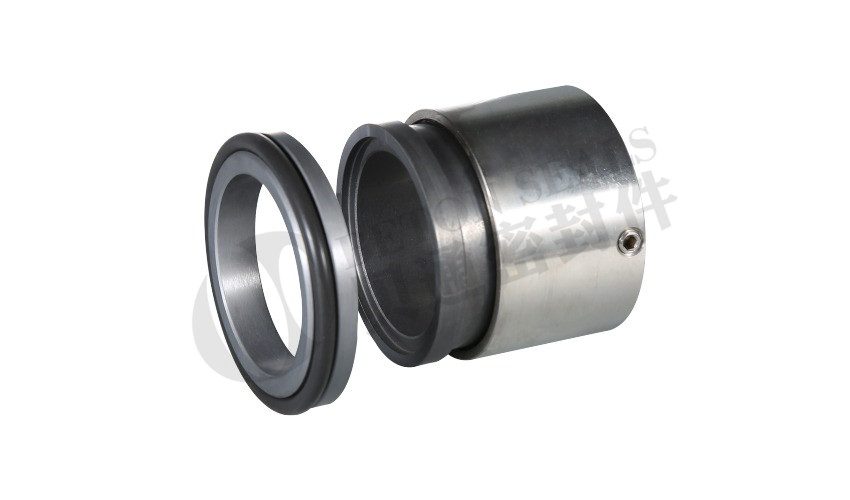

Multi Spring Mechanical Seal
Temperature：
-20℃ to +180℃
Pressure：
≤2.5Mpa
Speed：
≤15m/s
Material：
V1,Q1,Q2,U2,B,A,P,E,V,M1,M2,F,G,M

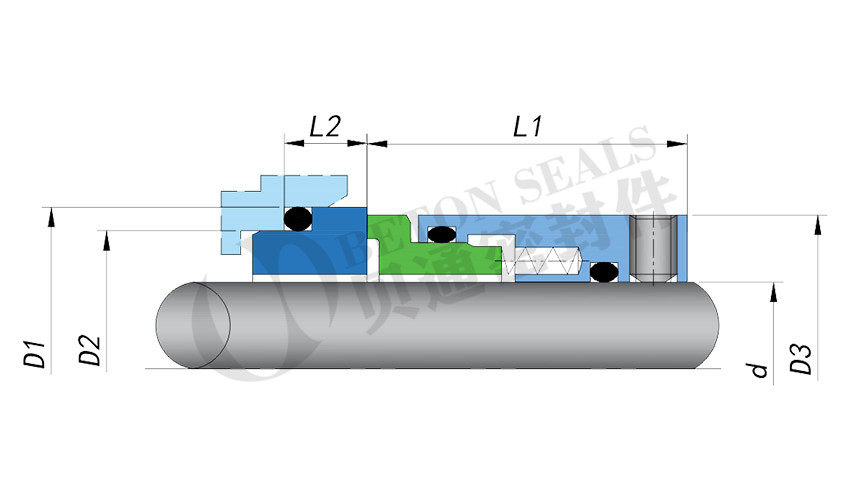

Size(Metric) | Size(Inch) | D1 | D2 | D3 | L1 | L2 |
18 | 33 | 27 | 33.28 | 34.90 | 7.5 | |
20 | 35 | 29 | 34.29 | 34.90 | 7.5 | |
22 | 37 | 31 | 36.30 | 34.90 | 7.5 | |
24 | 39 | 33 | 38.30 | 34.90 | 7.5 | |
25 | 1.000 | 40 | 34 | 39.29 | 34.90 | 7.5 |
28 | 1.125 | 43 | 37 | 42.29 | 34.90 | 7.5 |
30 | 45 | 39 | 44.30 | 34.90 | 7.5 | |
32 | 1.250 | 48 | 42 | 46.30 | 44.45 | 7.5 |
33 | 48 | 42 | 47.90 | 44.45 | 7.5 | |
35 | 1.375 | 50 | 44 | 49.48 | 44.45 | 7.5 |
38 | 1.500 | 56 | 49 | 54.28 | 44.45 | 9.0 |
40 | 58 | 51 | 56.08 | 44.45 | 9.0 | |
42 | 1.625 | 57.61 | 44.45 | |||
43 | 61 | 54 | 59.08 | 44.45 | 9.0 | |
45 | 1.750 | 63 | 56 | 60.78 | 44.45 | 9.0 |
48 | 1.875 | 66 | 59 | 64.10 | 44.45 | 9.0 |
50 | 2.000 | 70 | 62 | 66.09 | 44.45 | 9.5 |
53 | 2.125 | 73 | 65 | 69.80 | 44.45 | 11.0 |
55 | 75 | 67 | 71.00 | 44.45 | 11.0 | |
58 | 2.250 | 78 | 70 | 73.48 | 44.45 | 11.0 |
60 | 2.375 | 80 | 72 | 76.20 | 44.45 | 11.0 |
63 | 2.500 | 83 | 75 | 79.40 | 44.45 | 11.0 |
65 | 2.625 | 85 | 77 | 82.60 | 44.45 | 11.0 |
70 | 92 | 83 | 85.70 | 44.45 | 11.3 | |
2.750 | 92.08 | 50.80 | 11.3 | |||
2.875 | 95.25 | 50.80 | 11.3 | |||
75 | 3.000 | 97 | 88 | 98.43 | 50.80 | 11.3 |
3.125 | 101.60 | 50.80 | 11.3 | |||
80 | 3.250 | 105 | 95 | 104.78 | 50.80 | 12.0 |
85 | 3.375 | 110 | 100 | 107.95 | 50.80 | 14.0 |
3.500 | 111.30 | 50.80 | 14.0 | |||
90 | 3.625 | 115 | 105 | 114.30 | 50.80 | 14.0 |
95 | 3.750 | 120 | 110 | 117.48 | 50.80 | 14.0 |
3.875 | 120.65 | 50.80 | 14.0 | |||
100 | 4.000 | 125 | 115 | 123.83 | 50.80 | 14.0 |
