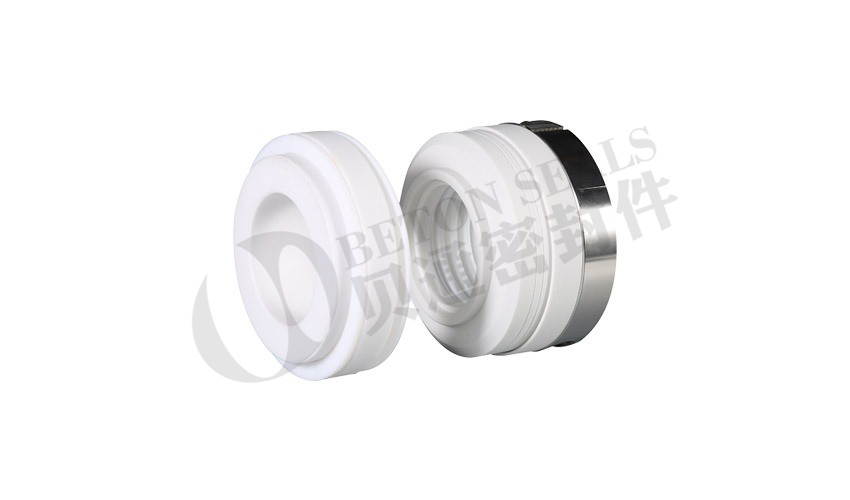

BWB2
Type：
PTFE Bellow Mechanical Seal
Replacement：
Crane Wb2
Temperature：
-20℃ to +120℃
Pressure：
≤0.5Mpa
Speed：
≤10m/s
Material：
Q2,V2,F,G,TEFLON

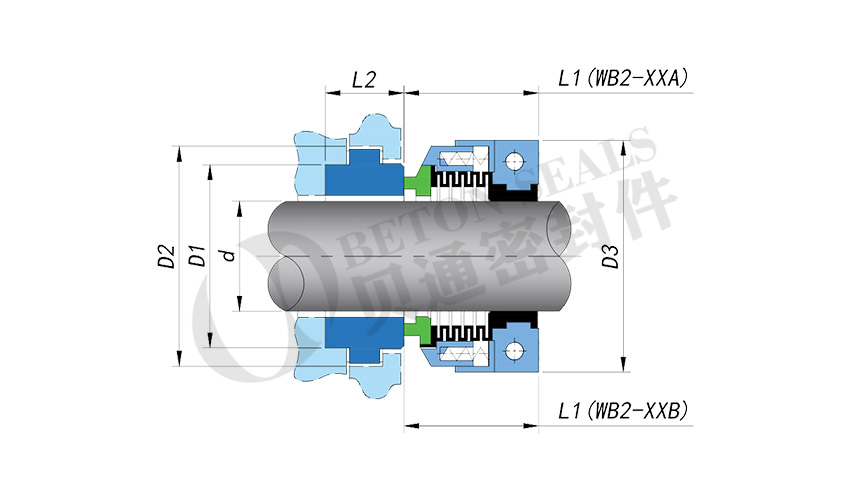

Size(Inch) | D1 | D2 | D3 | L1 | L2 | L11 |
25 | 47 | 60 | 60 | 42 | 27 | 45 |
30 | 53 | 67 | 67 | 42 | 27 | 45 |
32 | 50.7 | 64 | 69 | 42 | 27 | 45 |
35 | 57 | 70 | 72 | 42 | 27 | 45 |
40 | 62 | 76 | 78 | 42 | 26 | 45 |
45 | 67 | 82 | 84 | 44 | 27 | 46 |
50 | 72 | 86 | 88 | 46 | 27 | 46 |
55 | 77 | 90 | 95 | 46 | 27 | 46 |
60 | 82 | 95 | 100 | 46 | 27 | 46 |
65 | 87 | 100 | 105 | 46 | 27 | 46 |
Size(Inch) | D2 | D3 | L1 | L2 | L11 |
25.40 | 54 | 60 | 42 | 17.50 | 45 |
28.60 | 60 | 67 | 42 | 27.00 | 45 |
31.75 | 65 | 69 | 42 | 27.00 | 45 |
34.93 | 68 | 72 | 42 | 27.00 | 45 |
38.10 | 71 | 76 | 42 | 27.00 | 45 |
41.28 | 78 | 80 | 42 | 27.00 | 45 |
44.45 | 81 | 84 | 44 | 27.00 | 46 |
47.63 | 84 | 86 | 44 | 27.00 | 46 |
50.80 | 87 | 90 | 46 | 27.00 | 46 |
53.98 | 97 | 95 | 46 | 33.50 | 46 |
57.15 | 100 | 98 | 46 | 33.50 | 46 |
60.30 | 103 | 100 | 46 | 33.50 | 46 |
