10T-10R
Type：

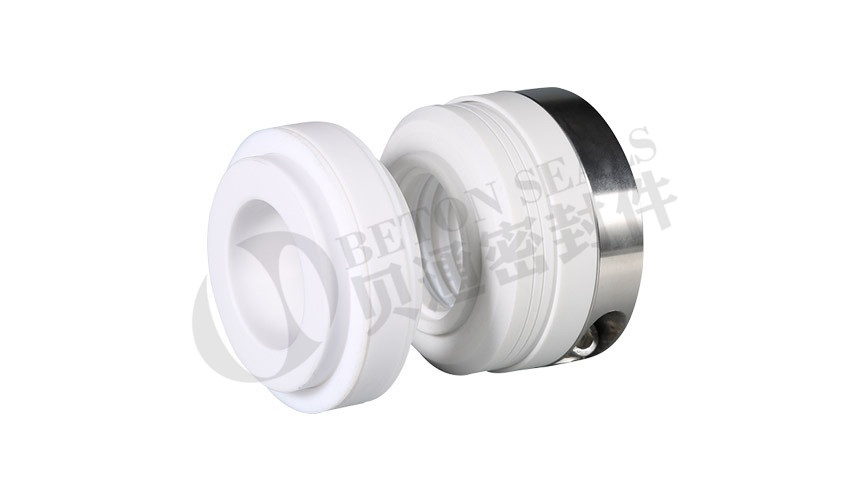

PTFE Bellow Mechanical Seal
Replacement：
Crane 10R/10T
Temperature：
-20℃ to +120℃
Pressure：
≤0.5Mpa
Speed：
≤10m/s
Material：
Q2,V2,F,G,TEFLON

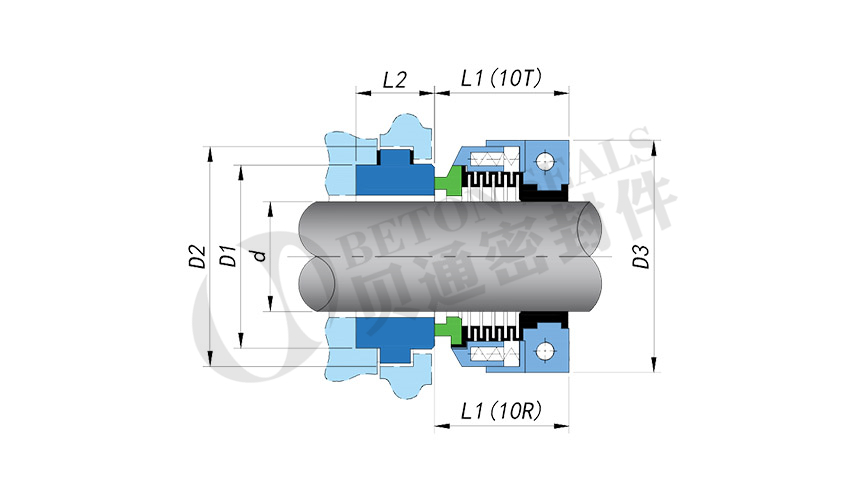

Size(Inch) | D1 | D2 | D3 | L1 | L2 |
25.40 | 42.86 | 54 | 60 | 33.2 | 17.6 |
28.60 | 50.80 | 65 | 67 | 36.2 | 27.0 |
31.75 | 53.98 | 68 | 69 | 37.2 | 27.0 |
34.93 | 57.15 | 71 | 72 | 38.2 | 27.0 |
38.10 | 63.50 | 78 | 76 | 38.2 | 27.0 |
41.28 | 66.68 | 81 | 80 | 40.2 | 27.0 |
44.45 | 69.85 | 84 | 84 | 40.2 | 27.0 |
47.63 | 73.03 | 87 | 86 | 43.2 | 27.0 |
50.80 | 79.38 | 97 | 90 | 43.2 | 33.3 |
