Type：

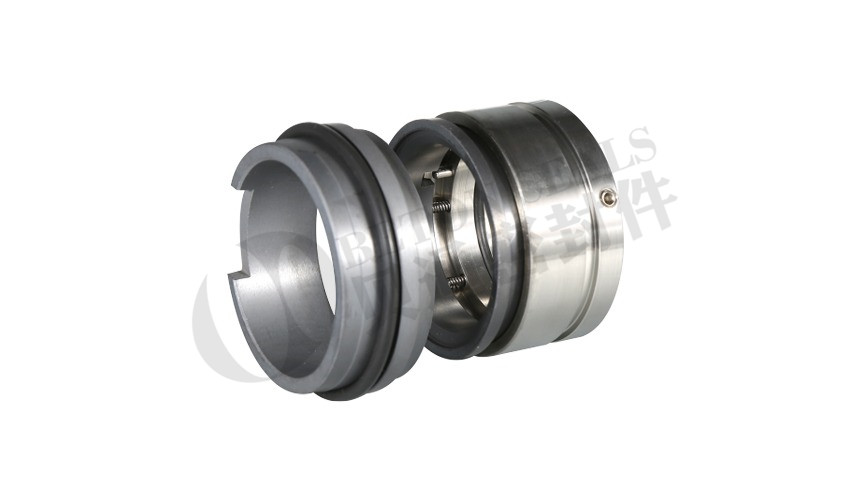

Lower seal to suit for Grundfos CRT、NK
CLM-G、CLP-G Series Pumps
Replacement：
Orginal Grundfos Seal
Temperature：
-30℃ to +200℃
Pressure：
≤2.5Mpa
Speed：
≤15m/s
Material：
B,Q2,U2,P,E,V,F,G

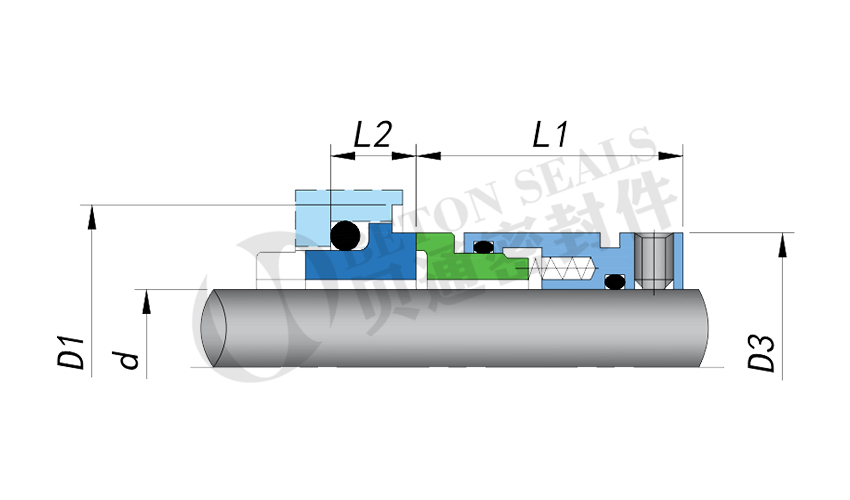

d(mm) | D1 | D3 | L1 | L2 |
32 | 48.00 | 46.00 | 32.40 | 11.00 |
38 | 55.00 | 54.00 | 33.90 | 11.20 |
50 | 69.30 | 66.00 | 34.40 | 14.00 |
65 | 85.40 | 85.00 | 38.90 | 15.30 |
