Type：

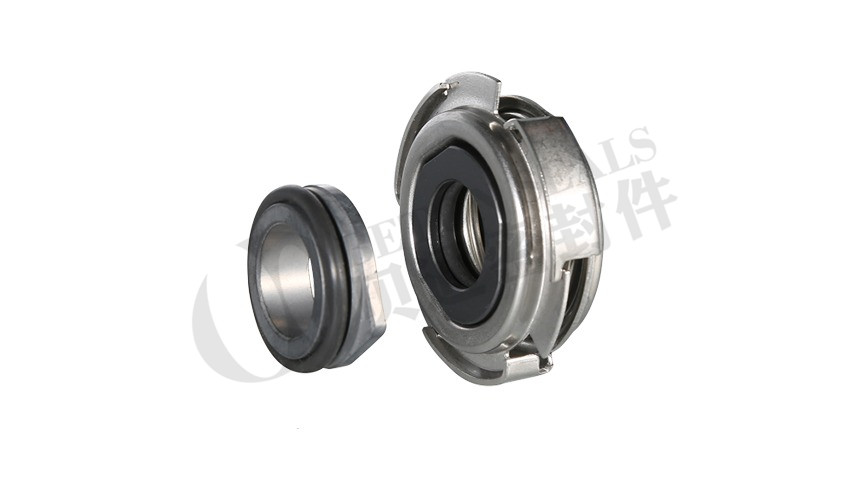

Suit for Grundfos CM series pumps
Replacement：
AES SOS
Temperature：
-20℃ to +180℃
Pressure：
≤1.2Mpa
Speed：
≤10m/s
Material：
A.B,Q1,Q2,P,E,V,F,G

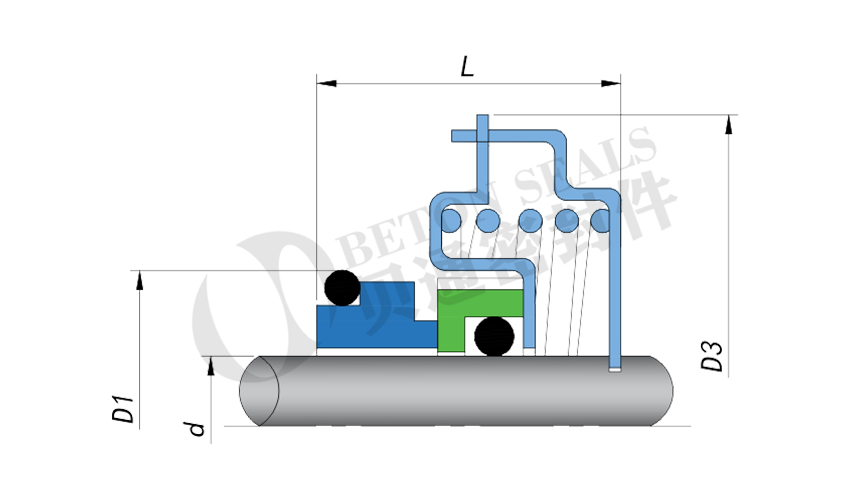

d(mm) | D1 | D3 | L |
12 | 22.50 | 48.00 | 23.60 |
16 | 27.00 | 48.00 | 23.60 |
